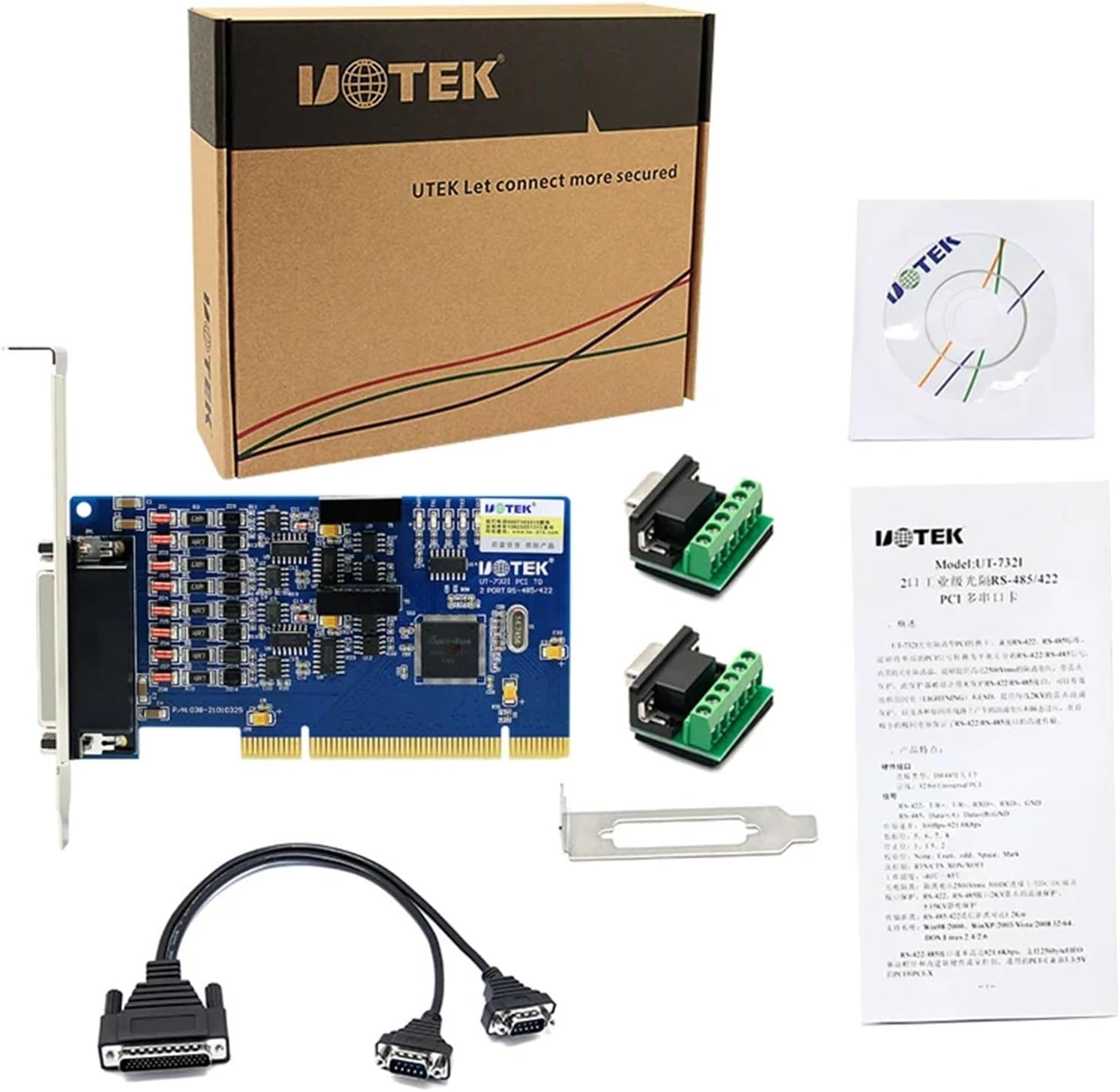

1PCS PCI to RS-485 RS-422 Serial Card RS485 RS422 2 Ports High Speed DR44 Expansion Converter with Isolation UT-732I

Serial Port CardsPCI to RS-485 RS-422 Serial Card RS485 RS422 2 Ports High Speed DR44 Expansion Converter with Isolation UT-732IUT-732i PCI multiport serial adapter with optoelectronic isolation is compatible with RS-422/485 standard; it converts PCI signal to balanced differential RS-422/485 signal. With built-in optoelectronic isolator, it provides as high as 2,500Vrms isolated voltage.This device is with and ESD protection, provides 2,000V each wire with surge protection, and surge voltage and instant overvoltage protection on circuit which causing by all reasons; the tiny interelectrode capacitance ensures high speed transmission for RS-422/485 ports.UT-732I Details UT-732I ParametersConnector: DR44 female x1BUS: 32 bits universal PCISignal: RS-422:T/R+, T/R-, RXD+, RXD-, GND; RS-485:Data+(A) Data-(B) GNDTransmission rate: 300bps-921.6KbpsData bits: 5, 6, 7, 8Stop bits: 1, 1.5, 2Check bits: None, Even, Odd, Space, MarkFlow control: RTS/CTS XON/XOFFOperating temperature: -40-85Optical isolation: 2,500Vrms isolated voltage, 500DC continuous specialized DC/DC moduleInterface protection: RS-422 & RS485 provides with 2KV surge 15KV ESD protectionTransmission distance 12km for RS485/422System: Win98/2000,WinXP/2003/Vista/2008/7/8/8.132/64, DOS/Linux 2.4/2.6UT-732I Application==========Hign-concerned Chemical : nonePackage : YesModel Number : UT-732IType : Dada Transfer CablePackage : YesModel Number : UT-732IType : PCI-E RiserProducts Status : STOCKDirection : Same Side
