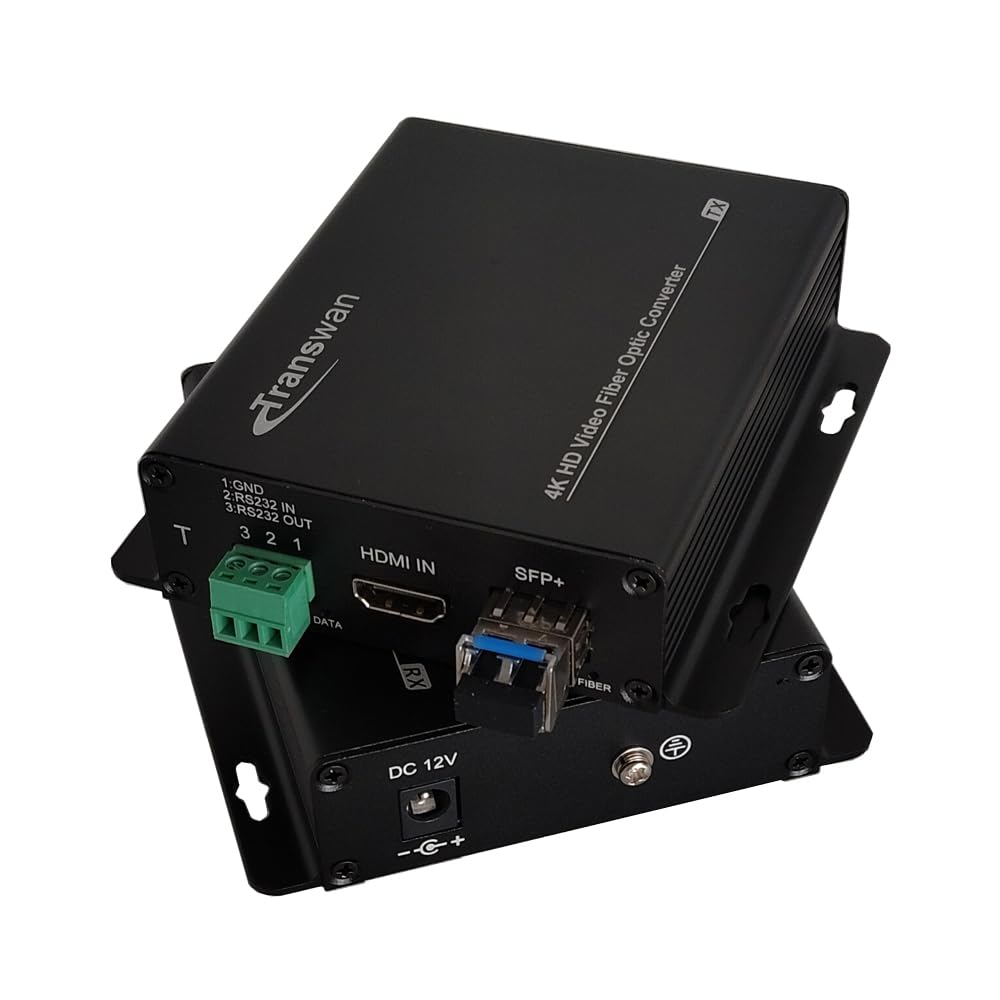

4K @ 30Hz HDMI with RS232 Data Optic Fiber Extender Over 10 Kilometers Single-Mode Optical, Support HDCP 1.4 and EDID (Over 2 Core Single-Mode Fiber)

BY-HDMI-308 4K/2K HDMI & RS232 Fiber Optic Extender includes a transmitter and a receiver, which is a high-speed, HDCP compliant fiber optic transport system capable of distributing high resolution 4K HDMI or DVI signals. Specs Optical Wavelength: 1310-1550nm Bit rate:10Gbps Tx power:＞-5db Rx sensitivity:＞-14db Fiber connector: 1 x LC, 2 x LC optional Video Video bandwidth:10~12 Gbps Maximum resolution:4096*2160@30Hz backward compatible Maximum pixel clock:297Mhz Effective cable length: 10 Meters Physical interface: HDMI female RS232 (3-wire system, full duplex) index Baud rate ： 256000Hz downward compatibility Data bits： 8 digits Physical interface： 3-pin phoenix terminal Mechanical Dimensions: 104 mm x 100 mm x 83 mm Weight: 500g per pair Environmental Operating Temperature:0° to +50° C Storage Temperature:-20° to +70° C Humidity (storage / operating):10% to 90% (non-condensing) Power Source Input: 100~240VAC / 50-60Hz Output: 12V1A Application: 1. Digital entertainment centers 2. Retail stores 3. AV events that require reliable and long-distance distribution suitable for Data Center, Control Rooms, Conference Rooms, Schools and Corporate Training environment. Package: 1. 1 x transmitter with SFP module. 2. 1 x receiver with SFP module. 3. 2 x Power Adapter 4. 1 x Manual

• Maximum support 4096*2160@30Hz, be backward compatible
• Support HDCP 1.4 and EDID；Support RGB4:4:4 YUV4:4:4 4:2:2 4:2:0
• Support DDC CEC HPD signal
• Support 1 channel bidirectional full-duplex RS232
• 10 Km over Dual or Single Single-mode Fiber.
• with SFP module, plug and play, no software drivers needed.
