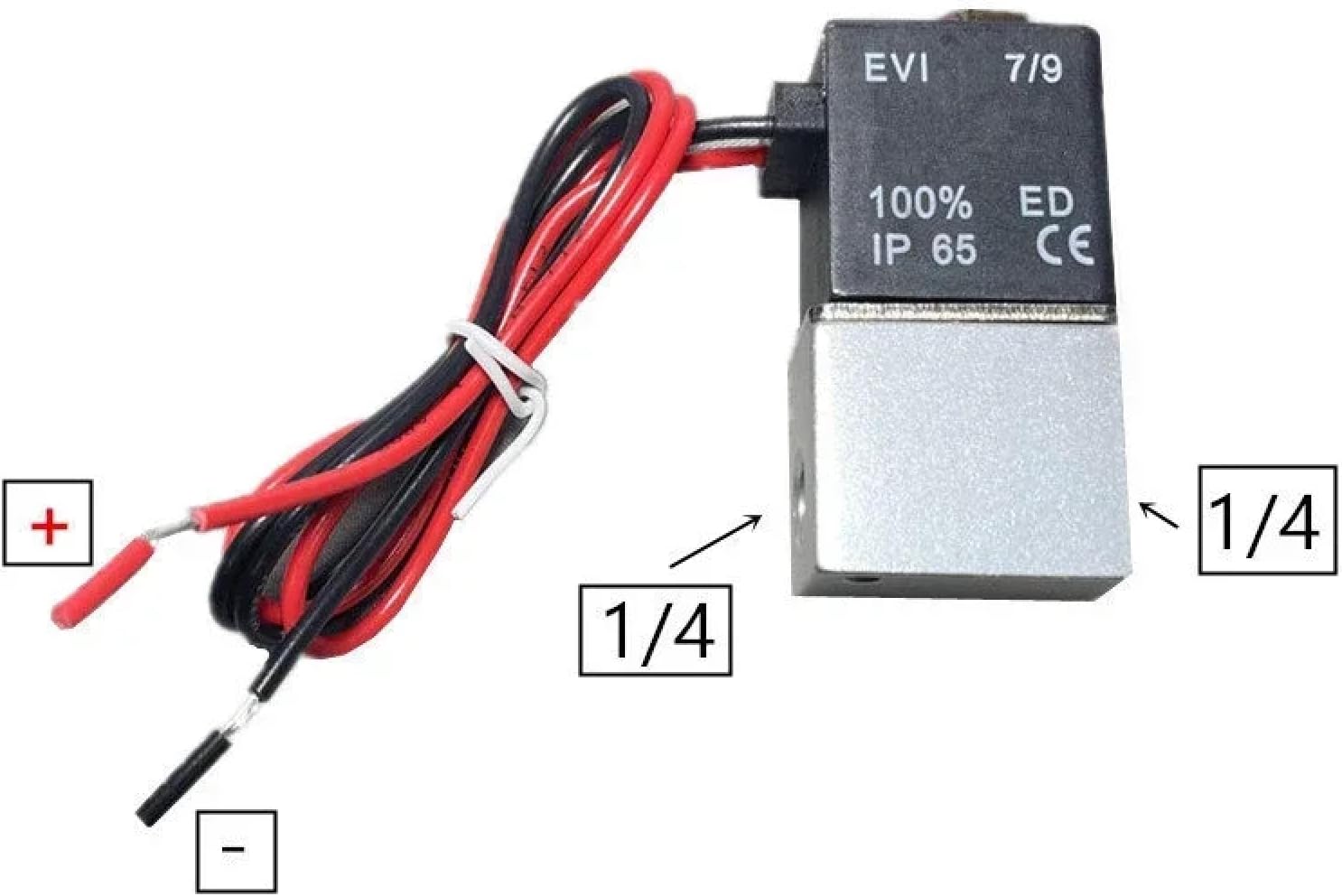

Normally Closed Solenoid Valve, 1/4 Inch NPT, AC 110V/220V or DC 12V/24V, for Air, Water and Oil, Alloy Body, CE Certified (6mm DC 12V)
Product details
| Management number | 212643550 | Release Date | 2026/04/06 | List Price | $24.32 | Model Number | 212643550 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This Normally Closed 1/4" Solenoid Valve is a versatile and reliable solution for controlling the flow of air, water, and oil in a wide range of pneumatic and fluid systems. Featuring a durable alloy body construction, this compact valve is built to withstand demanding conditions while maintaining consistent performance. The normally closed design ensures fail-safe operation, automatically shutting off flow when power is removed. Available in multiple voltage options including DC 12V, DC 24V, AC 110V, and AC 220V, this valve offers wide compatibility with various power supplies. The 1/4" NPT port size makes integration into existing systems straightforward, and push-to-connect fittings are compatible with 4mm, 6mm, 8mm, and 10mm tubing. Rated at 100% ED duty cycle and IP65 for protection against dust and water ingress, this solenoid valve is designed for continuous operation in challenging environments. The coil operates at 5.5VA with a voltage range of AC 97V to 123V at 50/60Hz. Whether used in industrial automation, irrigation, or fluid control applications, this solenoid valve delivers dependable performance you can count on.
- NORMALLY CLOSED DESIGN: This solenoid valve remains closed when de-energized, providing reliable fail-safe operation for air, water, and oil systems.
- WIDE VOLTAGE COMPATIBILITY: Available in DC 12V, DC 24V, AC 110V, and AC 220V options with a voltage range of AC 97V–123V and 50/60Hz frequency support.

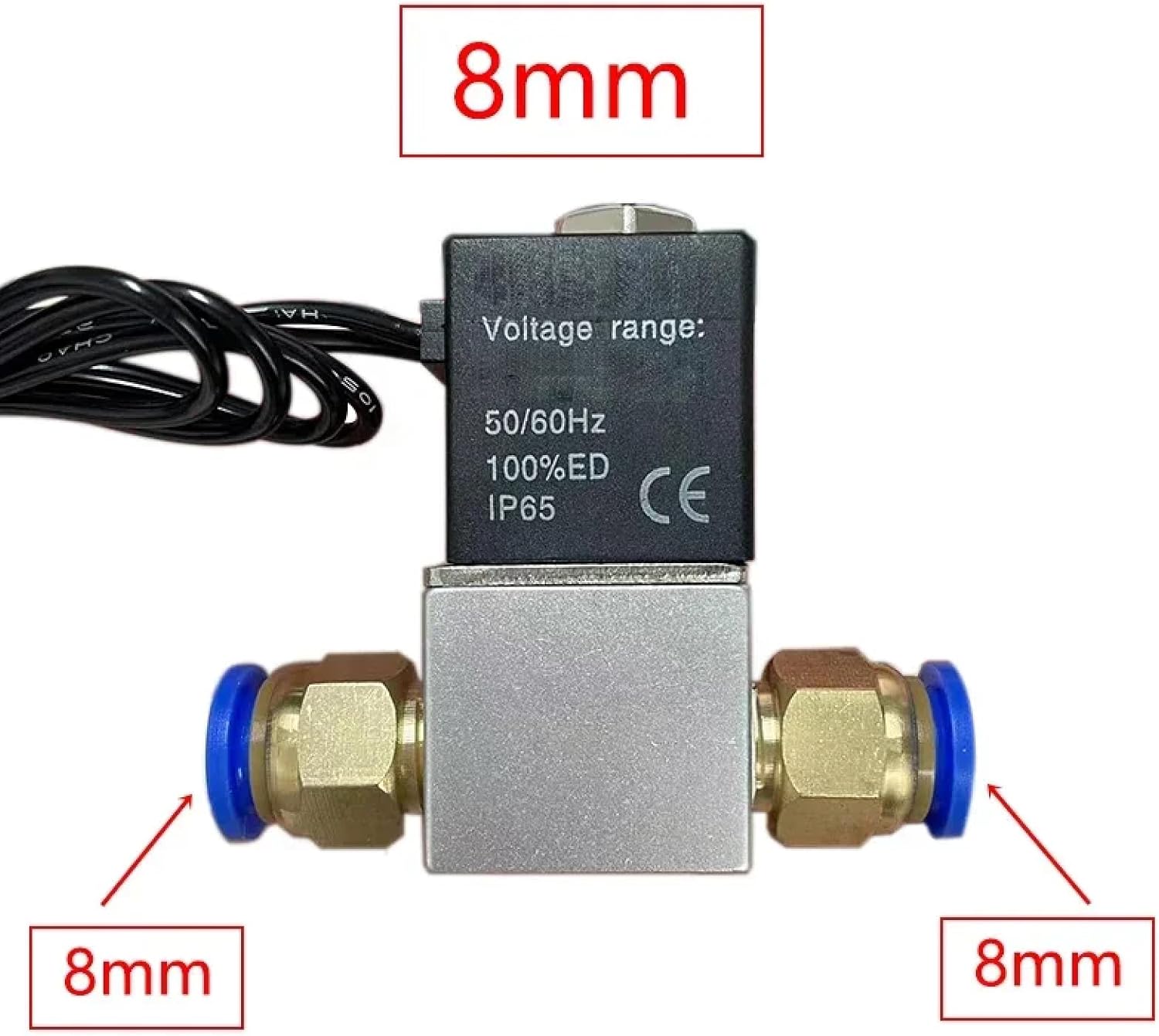

- VERSATILE PORT SIZE: Features a 1/4 inch NPT port with quick-connect push-in fittings compatible with 4mm, 6mm, 8mm, and 10mm tubing for easy installation.
- DURABLE ALLOY CONSTRUCTION: Built with a sturdy alloy body rated at 100% ED duty cycle and an IP65 ingress protection rating for long-lasting performance.
- COMPACT AND EFFICIENT: Operates at just 5.5VA power consumption, making it an energy-efficient choice for pneumatic and fluid control applications.
| UPC | 707781049432 |
|---|---|
| Brand Name | ZKDPBXBK |
| Unit Count | 2.0 Count |
| Manufacturer | ZKDPBXBK |
| Model Number | 1/4" OR 3/8" |
| Item Dimensions | 3 x 1.5 x 2.5 inches |
| Maximum Pressure | 600 Pound per Square Inch |
| Specification Met | CCC, CE, UL |
| Included Components | Valve |
| Outlet Connection Size | 0.47 Inches |
